Facilities

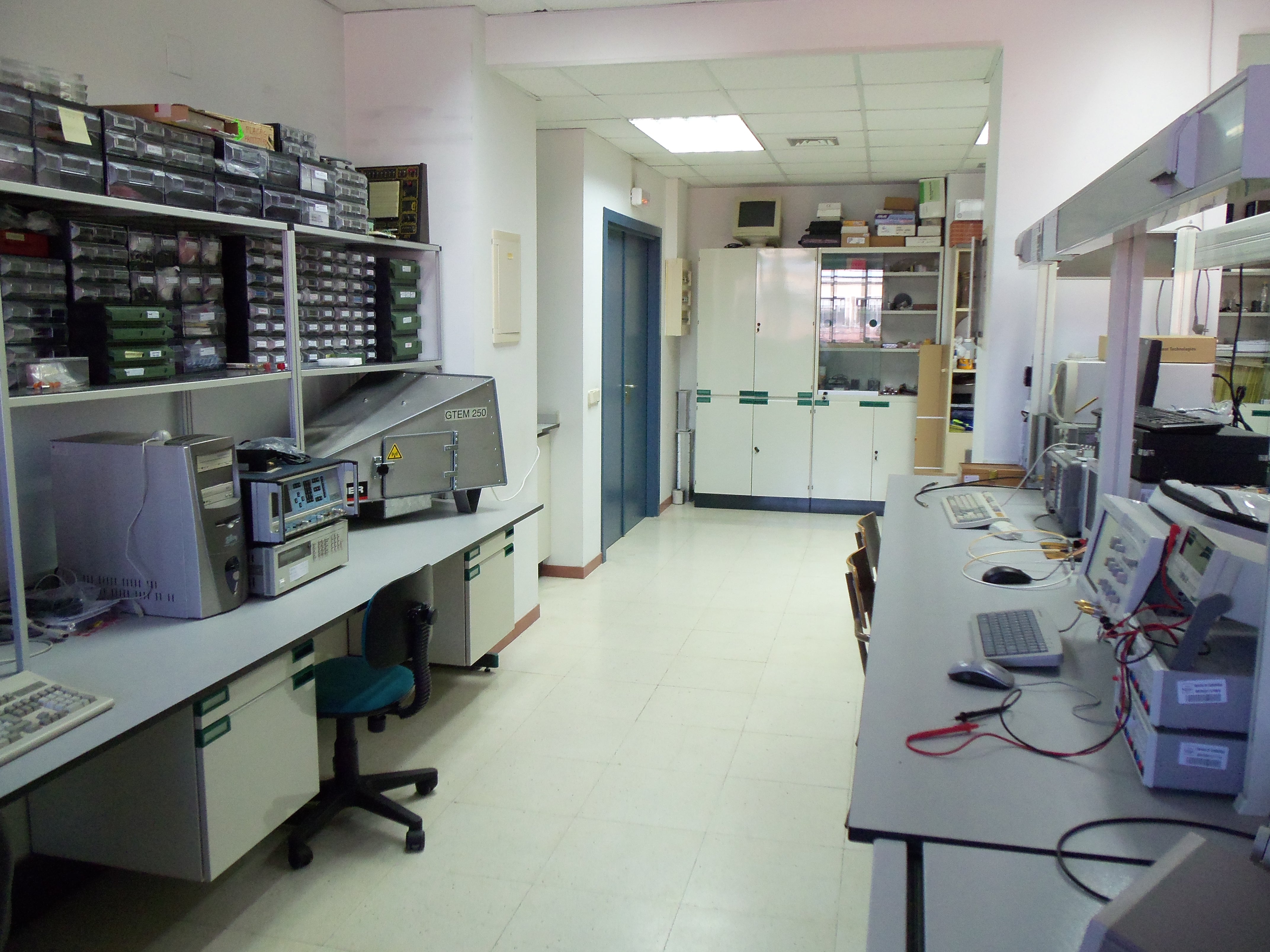

The group has access to mechanical workshop facilities, a 20 m2 clean chamber class 100000, a 50 m2 laboratory (Microwave Laboratory) for prototyping and tests and a 20 m2 laboratory (Electromagnetic Compatibility Laboratory) for radiated and conducted tests, as well as static charge measurements. Besides the standard facilities for electronics design, UCM-ELEC labs offer advanced instrumentation such as
- A 12 GHz oscilloscope with probes for surface mount sampling;
- two vector network/impedance analyzers covering the range 5 Hz - 20 GHz,
- three spectrum analyzers covering the range 100 mHz - 6 GHz;
- a precision voltage source/nanoamperimeter;
- a chamber with thermal control between -10 to 70 ºC;
- two portable Electromagnetic Field detectors covering the range 5 Hz- 3 GHz;
- an SMD advanced rework/soldering station;
- ps-range pulsed light sources and
- an IR thermographic camera with different lenses.
