The basic laser equipments at CLUR consist of two femtosecond laser systems and one nanosecond laser system. These laser systems are made of a series of lasers and auxiliary equipments (oscillators, amplifiers, harmonic generators, optical parametric amplifiers, diagnostic equipments). This way, a wide variety of laser pulses with time durations from several nanoseconds down to tens of femtoseconds at a variety of wavelengths, energies per pulse and repetition rates, are available at CLUR. A detailed description of the different femtosecond and nanosecond laser systems can be found as follows:

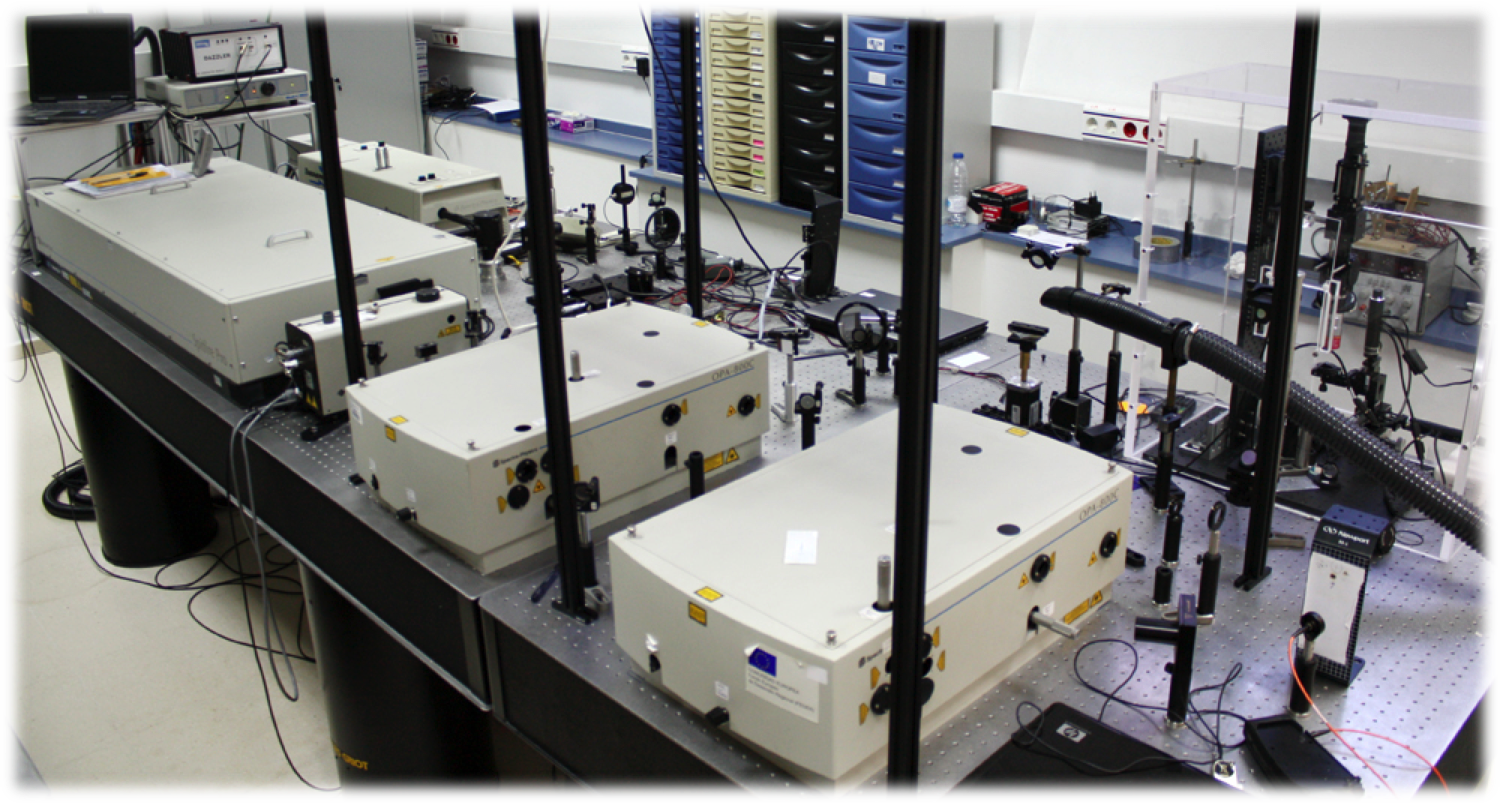

Femtosecond laser system (FEMTO1)
Pump laser of femtosecond oscillator	Nd:Vanadate 5 W,  532 nm
Femtosecond oscillator	Ti:Sapphire 430 mW, 800 nm, 80 MHz, 35 fs/pulse
Pump laser of Femtosecond Regen Amplfier	Nd:YLF 20 mJ/pulse, 527 nm, 1 KHz
Regen Amplifier	Ti:Sapphire 3.5 mJ/pulse, 800 nm, 1 KHz, 35 fs/pulse
Optical Parametric Amplifier	Tuneable radiation from UV (235 nm) up to IR (3 µm)
Diagnostics tools
Autocorrelator	single-shot second harmonics
FROG	time and frequency diagnostics
FROG-SCAN	time and frequency diagnostics

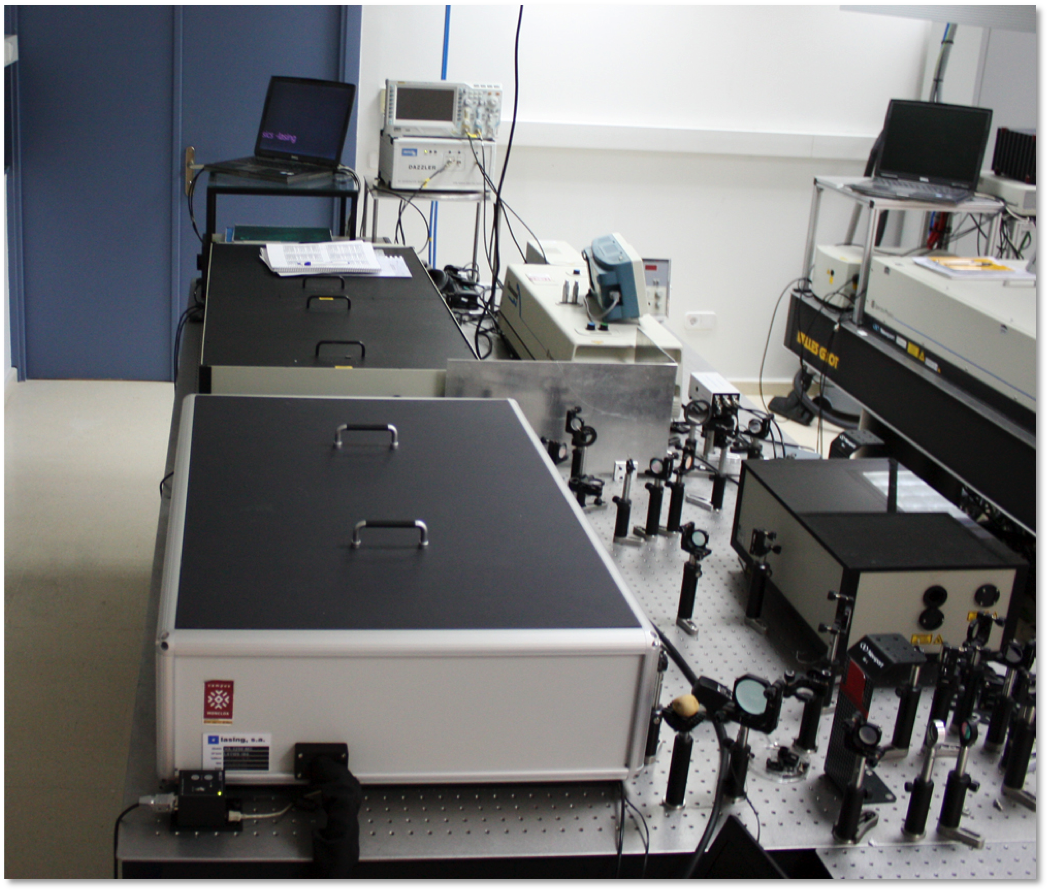

Femtosecond laser system (FEMTO2)
Pump laser of femtosecond oscillator	Nd:Vanadate 5 W,  532 nm
Femtosecond oscillator	Ti:Sapphire 500 mW, 720-840 nm, 80 MHz, 80 fs/pulse
Pump laser of Femtosecond Regen Amplfier	Nd:YLF 10 mJ/pulse, 527 nm, 1 KHz
Regen Amplifier	Ti:Shaffire 1 mJ/pulse, 800 nm, 1 KHz, 80 fs/pulse
Diagnostics tools
Autocorrelator	single-shot second harmonics

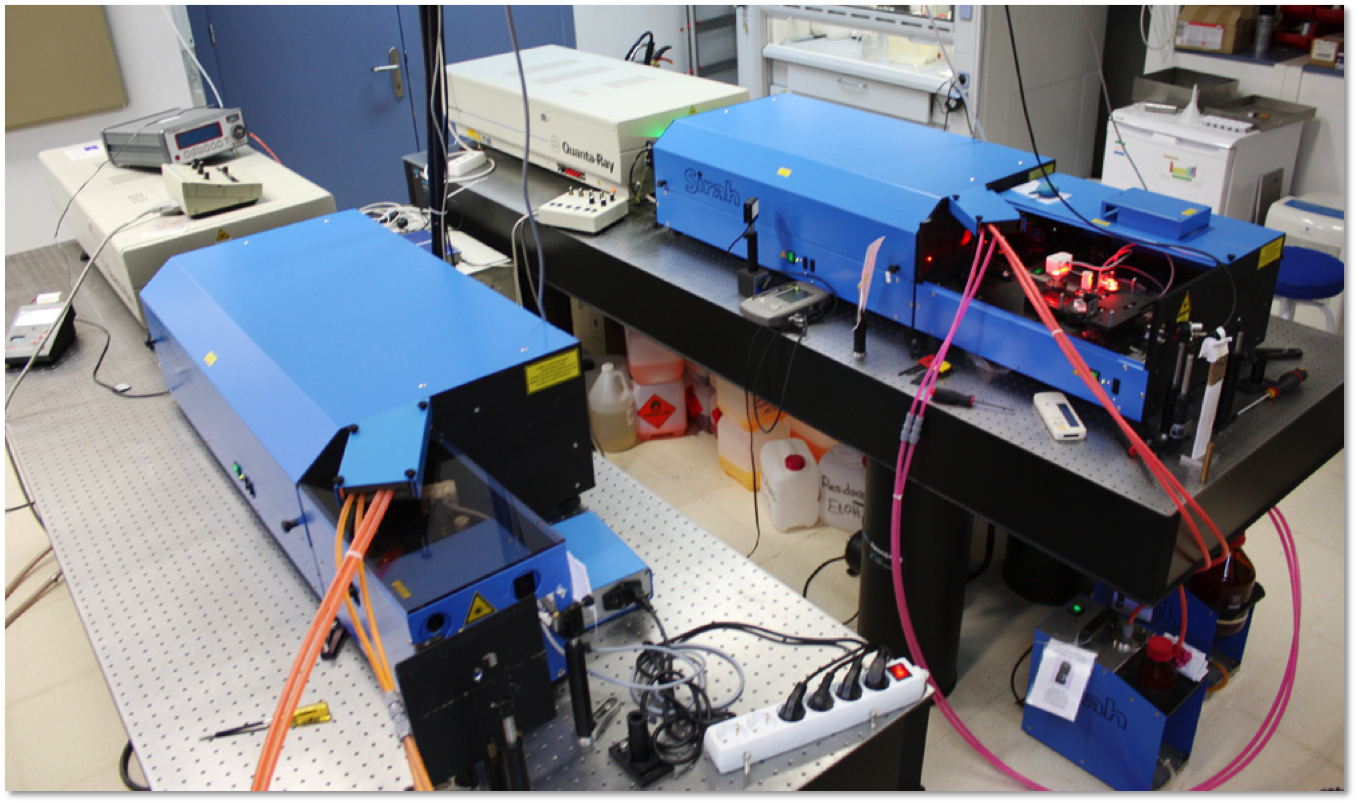

Nanosecond Laser system
Nd:YAG laser	1064 nm - 800 mJ,  532nm - 300 mJ 355 nm - 150 mJ, 266 nm - 60 mJ, 10 Hz
Nd:YAG laser	1064 nm - 1250 mJ, 532 nm - 650 mJ 355 nm - 375 mJ, 266 nm - 130 mJ, 10 Hz
Nd:YAG laser	1064 nm - 450 mJ, 532 nm - 200 nm 355 nm - 100 mJ, 266 nm - 60 mJ, 10 Hz
Dye laser	laser radiation between 380 and 900 nm
Dye laser	laser radiation between 350 and 740 nm
Second harmonic generation module	laser radiation between 202 and 245 nm
Second harmonic generation module	laser radiation between 206 and 380 nm
